产品目录

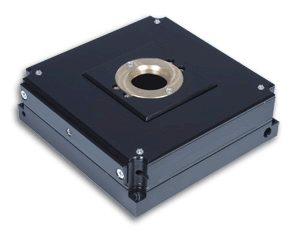

Mad City Labs Nano-F3D

控制器. 页面列出的重点包括: XYZ objective lens piezo positioner 100μm range of motion in all three axes Interchangeable, quick mount adapters Clo...

型号

Nano-F3D

产品特点

XYZ objective lens piezo positioner 100μm range of motion in all three axes Interchangeable, quick mount adapters Closed loop control

典型应用

Custom microscope scanning 4Pi microscopy Optical inspection

技术参数

Range of motion (X, Y, Z) 100 μm Resolution 0.2 nm Resonant Frequency (X/Y/Z) 300/200/400 Hz ±20% Stiffness 1.0 N/μm Recommended max. load* 0.5 kg Body Material Aluminum and Brass Threaded Adapters RMS, M25, M26 Controller Nano-Drive ® * Larger load.

SV-1A/SV-10A/SV-100A

低粘性测定的最佳仪器，仅需2ml（SV-1A）样品即可测量，特别适用昂贵及不易取得样品，如：血液、血浆、镜片镀膜液、电子业、半导体等特殊化学溶剂。- 最低粘度测定范围0.3mPa·s~（SV-1A/SV-10A） - 实时测量，追踪温度变化对粘液粘度和稳定时间的影响 - 可实现长时间连续测量 - 可在线测量流动（...

Mad City Labs Nano-UHV50

微定位系统. 页面列出的重点包括: UHV compatible piezo nanopositioner Two axis (XY) 50 μm x 50 μm ranges of motion Bakeable to 100° C Titanium or i...

型号

Nano-UHV50

产品特点

UHV compatible piezo nanopositioner Two axis (XY) 50 μm x 50 μm ranges of motion Bakeable to 100° C Titanium or invar construction Closed loop PicoQ ® control

典型应用

X-ray, VUV, and optical microscopy Surface metrology UHV atomic scale microscopy Special designs - just contact us with your requirements

技术参数

Range of motion (X) 50 μm Range of motion (Y) 50 μm Resolution (XY) 0.1 nm Resonant Frequency (X) 500 Hz ±20% Resonant Frequency (Y) 250 Hz ±20% Stiffness 0

RV-10000A/RV-10000

低粘度测量变革，“音叉振动法”实现从低粘度0.3mPa・s到25，000mPa・s的高精度连续测量，可变剪切率适应不同特性状态流体。适用范围 - 油漆和油墨 - 水泥、造影剂等浆料 - 粘合剂和灌封胶等 - 日化品：护手霜、化妆水、卸妆油、啫喱等

Mad City Labs Nano-UHV100

微定位系统. 页面列出的重点包括: UHV compatible piezo nanopositioner Two axis (XY), large aperture 100 μm x 100 μm ranges of motion Bakeable to 1...

型号

Nano-UHV100

产品特点

UHV compatible piezo nanopositioner Two axis (XY), large aperture 100 μm x 100 μm ranges of motion Bakeable to 100° C Titanium or invar construction Closed loop PicoQ ® control

典型应用

X-ray, VUV, and optical microscopy Surface metrology UHV atomic scale microscopy Special designs - just contact us with your requirements

技术参数

Range of motion (X) 100 μm Range of motion (Y) 100 μm Resolution (XY) 0.2 nm Resonant Frequency (X) 500 Hz ±20% Resonant

MS-74A(T) / MX-53A(T) / MF-53A快速水分测定仪

最小显示10ppm（0.001%）的水分测量，全系列5款型号。触摸屏型号 MS-74AT：最小显示水分率 0.001％ MX-53AT：最小显示水分率 0.01％ 采用5英寸触摸显示屏，操作简单易上手。液晶显示型号

Mad City Labs Nano-UHV200

微定位系统. 页面列出的重点包括: UHV compatible piezo nanopositioner Three axis (XYZ) 200 μm x 200 μm x 200 μm motion Bakeable to 100° C Titanium...

型号

Nano-UHV200

产品特点

UHV compatible piezo nanopositioner Three axis (XYZ) 200 μm x 200 μm x 200 μm motion Bakeable to 100° C Titanium and 316SS construction Closed loop PicoQ ® control

典型应用

X-ray, VUV, and optical microscopy Surface metrology UHV atomic scale microscopy Special designs - just contact us with your requirements

技术参数

Range of motion (X) 200 μm Range of motion (Y) 200 μm Range of motion (Z) 200 μm Resolution (XYZ) 0.4 nm Resonant F

MS-70/MX-50/MF-50快速水份测定仪

通过卤素加热技术和出色的SHS称重工艺技术实现精确温度控制而快速获得可靠结果，水份检测精度从0.001%到0.1%，可满足制药、塑料与食品等行业的质量控制、生产与在线控制的需求。- 智能传感器SHS，快速精准响应 - 直管卤素灯，可实现高速、匀速加热 - 标配RS-232C接口（D-Sub25P) - 标准、快速...

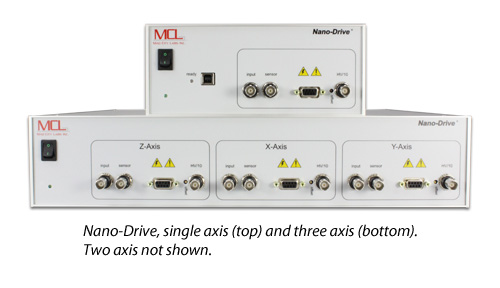

Mad City Labs Nano-Drive® Series

控制器. 页面列出的重点包括: Closed loop servo/drivers for all Mad City Labs piezo nanopositioning systems Proportional-Integral feedbac...

型号

Nano-Drive® Series

产品特点

Closed loop servo/drivers for all Mad City Labs piezo nanopositioning systems Proportional-Integral feedback for highest resolution in the industry Analog or digital (USB) positioning control High speed USB 2.0 interface High power models available f

控制方式

Closed loop control

FX-300i-PT移液器校准天平

采用ISO8655（称量）检定规程，快速进行移液器性能测试和校准，确保精确移液过程。产品大类 实验室分析仪器 产品分类 移液器校准天平 品牌 A&D / 爱安德 型号 FX-300i-PT 产品名称 产品大类 实验室分析仪器 产品分类 移液器校准天平

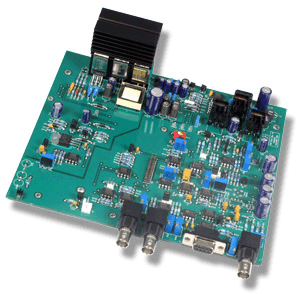

Mad City Labs OEM Nano-Drive® Controller

控制器. 页面列出的重点包括: Closed loop servo/drivers for all Mad City Labs piezo nanopositioning systems Proportional-Integral...

型号

OEM Nano-Drive® Controller

产品特点

Closed loop servo/drivers for all Mad City Labs piezo nanopositioning systems Proportional-Integral feedback Analog or digital (USB 2.0) positioning control High power models available for continuous high speed scanning ROHS and CE compliant

控制方式

Closed loop control

AD-4212A-PT移液器校准天平

AD-4212A-PT采用ISO8655(称量)检定规程，快速进行移液器性能测试和校准，确保精确移液过程。产品大类 实验室分析仪器 产品分类 移液器校准天平 品牌 A&D / 爱安德 型号 AD-4212A-PT 产品名称 产品大类 实验室分析仪器 产品分类 移液器校准天平

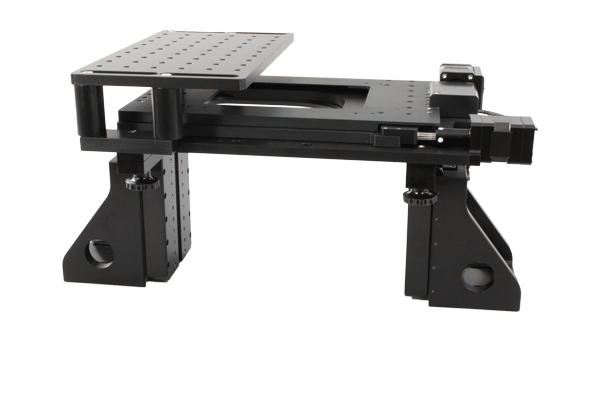

Mad City Labs Mad-Deck

扫描探针显微系统. 页面列出的重点包括: XYZ motion Proprietary intellegent control High Native precision and accuracy Nanopositioner compatible Many mod...

型号

Mad-Deck

产品特点

XYZ motion Proprietary intellegent control High Native precision and accuracy Nanopositioner compatible Many models available

典型应用

Single molecule microscopy Electrophysiology Multi Photon Microscopy Interferometric Scattering Microscopy Scanning NV Magnetometry Automation

控制方式

Closed loop control

MPB多通道电动移液器

降低人为误差，减少肌肉劳损，提高工作效率。● 易读、直观的菜单导航，直观简单按键操作，无需说明书即可快速上手。多种移液模式，可满足更多移液需求，最多可储存9个常用移液操作程序

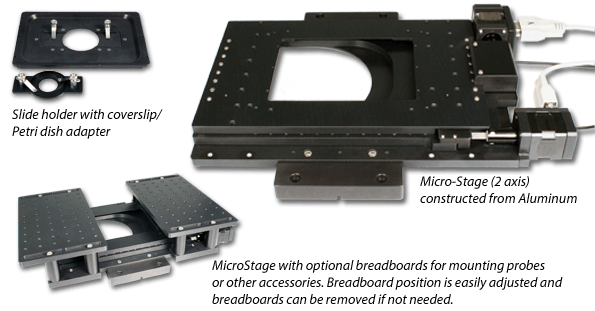

Mad City Labs MicroStage Series

扫描探针显微系统. 页面列出的重点包括: XY motion: 25mm Optional encoders: 50 nm resolution Fits inverted microscopes, custom available Proprie...

型号

MicroStage Series

产品特点

XY motion: 25mm Optional encoders: 50 nm resolution Fits inverted microscopes, custom available Proprietary intelligent control for stability High native precision & accuracy Nanopositioner compatible

典型应用

Complex, programmed motion control Optical microscopy Automation

MPA单通道电动移液器

降低人为误差，减少肌肉劳损，提高工作效率。● 易读、直观的菜单导航，直观简单按键操作，无需说明书即可快速上手。多种移液模式，可满足更多移液需求，最多可储存9个常用移液操作程序

Mad City Labs Manual MicroStage Series

微定位系统. 页面列出的重点包括: 25mm total motion on XY axes Manual micrometer position adjustment 1 μm vernier scales Integrated, ...

型号

Manual MicroStage Series

产品特点

25mm total motion on XY axes Manual micrometer position adjustment 1 μm vernier scales Integrated, continuous position locking Fits inverted microscopes and can be customized for other optical setups Highly stable

典型应用

Coarse positioning for high resolution piezo nanopositioning stages Direct replacement for standard, nonlocking microscopy stages

AD-3255超声波测厚仪

金属/玻璃/塑料/陶瓷/环氧树脂等材料厚度测量。● 宽量程测量范围，0.8~300mm，实现一台仪器上全覆盖。测量精度0.01mm，可切换测量精度0.01/0.1mm

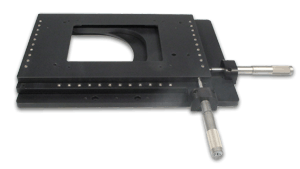

Mad City Labs Manual MicroStage-LT Series

扫描探针显微系统. 页面列出的重点包括: 50mm total motion on XY axes Allows objective nosepiece rotation Manual micrometer position a...

型号

Manual MicroStage-LT Series

产品特点

50mm total motion on XY axes Allows objective nosepiece rotation Manual micrometer position adjustment 1 μm vernier scales Integrated, continuous position locking Fits inverted microscopes and can be customized for other optical setups Highly stable

典型应用

Coarse positioning for high resolution piezo nanopositioning stages Direct replacement for standard, nonlocking microscopy stages

GX-L/GF-L防水工业天平

量程:12kg~102kg/可读性:0.1g~1g 最小显示精度0.1g，最大量程102kg，IP65防护等级，可高压冲洗，清洁工作简单快捷，适用于潮湿/粉尘等恶劣环境。

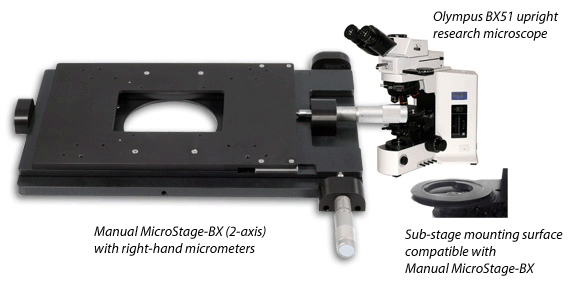

Mad City Labs Manual MicroStage-BX Series

微定位系统. 页面列出的重点包括: 25mm total motion on XY axes Manual micrometer position adjustment 1 μm vernier scales Integrate...

型号

Manual MicroStage-BX Series

产品特点

25mm total motion on XY axes Manual micrometer position adjustment 1 μm vernier scales Integrated, continuous position locking Fits Olympus BX upright microscopes Highly stable

典型应用

Coarse positioning for high resolution piezo piezo nanopositioning stages Direct replacement for standard, nonlocking microscopy stages

GX-M/GF-M防水工业天平

量程:8.2kg~32.2kg/可读性:0.01g~1g 大量程，高精度，IP65防护等级，可高压冲洗，清洁工作简单快捷，适用于潮湿/粉尘等恶劣环境。

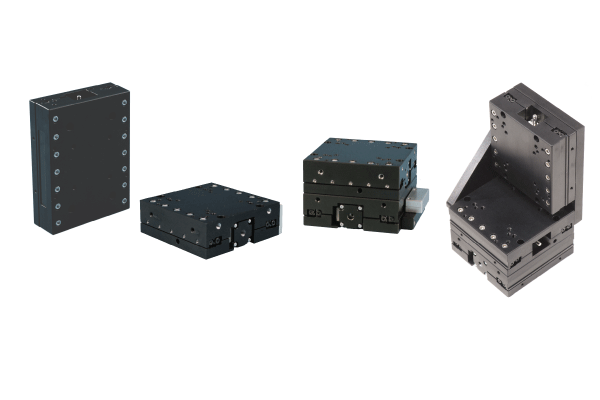

Mad City Labs MMP Series

扫描探针显微系统. 页面列出的重点包括: Modular linear micropositioners Range of motion: 25mm and 50mm Optional encoders: 50 nm resolution Proprietary...

型号

MMP Series

产品特点

Modular linear micropositioners Range of motion: 25mm and 50mm Optional encoders: 50 nm resolution Proprietary intelligent control for stability High native precision & accuracy Nanopositioner compatible Mix and match different travel ranges

典型应用

Complex programmed motion control High precision positioning Automation

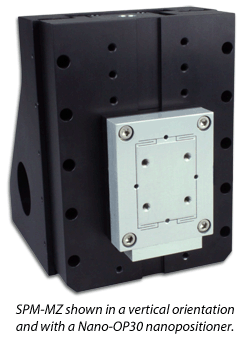

Mad City Labs SPM-MZ

扫描探针显微系统. 页面列出的重点包括: Single axis micropositioner for nanopositioner integration High stability, precision aligned with built-in right a...

型号

SPM-MZ

产品特点

Single axis micropositioner for nanopositioner integration High stability, precision aligned with built-in right angle mount 25mm travel with 95nm step Low drift, intelligent motor control Compatible with Nano-OP Series and Nano-OP-M Series

典型应用

Scanning probe microscopy Nanomanipulation

控制方式

Closed loop control
