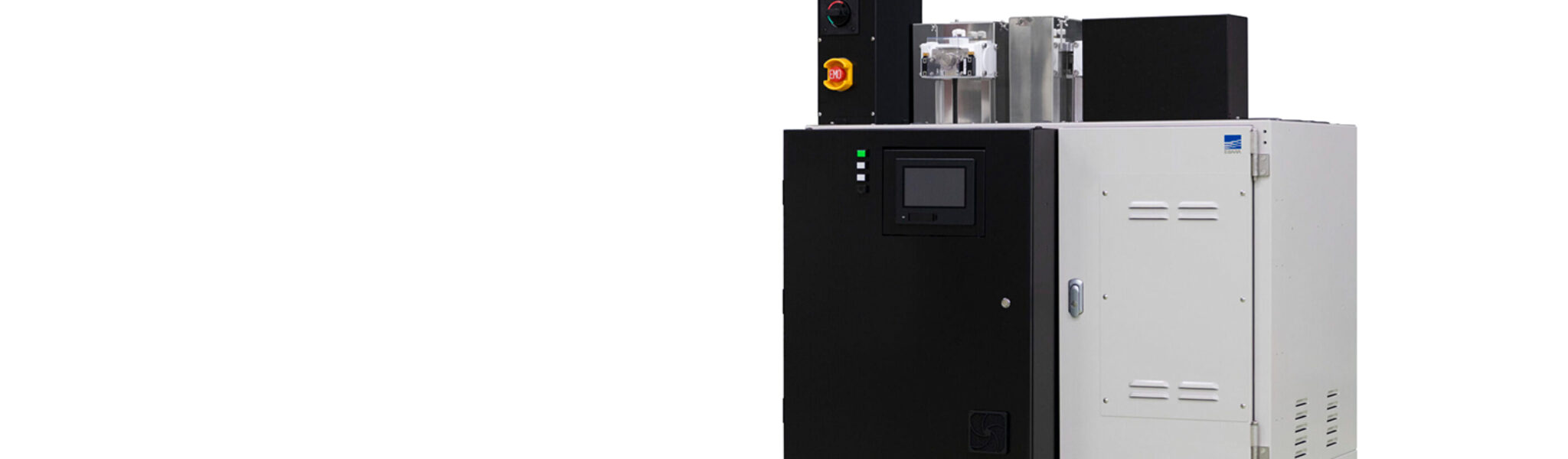

EBARA LA+ 废气处理系统
为燃烧式废气处理设备，最大 airflow capacity 为 600 L/min。
- 型号
- LA+
- Maximum airflow capacity
- 600 L/min
- 技术信息
- Hydrogen fuel option; engineered and produced in Japan
Mad City Labs Nano-YT500
控制器. 页面列出的重点包括: Single axis motion piezo nanopositioner Long range - 500μm Compact size Rectangular aperture Closed loop PicoQ ® co...
- 型号
- Nano-YT500
- 产品特点
- Single axis motion piezo nanopositioner Long range - 500μm Compact size Rectangular aperture Closed loop PicoQ ® control
- 典型应用
- Long range scanning Inspection, quality control
- 技术参数
- Range of motion 500 μm Resolution 1.0 nm Resonant Frequency 150 Hz ±20% Stiffness 0.8 N/μm Recommended max. load (horizontal)* 0.5 kg Recommended max. load (vertical)* 0.1 kg Body Material Aluminum Controller Nano-Drive ® * Larger load requirements s
MIX 15 eco
2mag »
- Type
- MIX 15 eco
- Stirring points
- 15
- Stirring point distance
- 65 mm
- Stirring volume/stirring point
- 1 – 1,500 ml

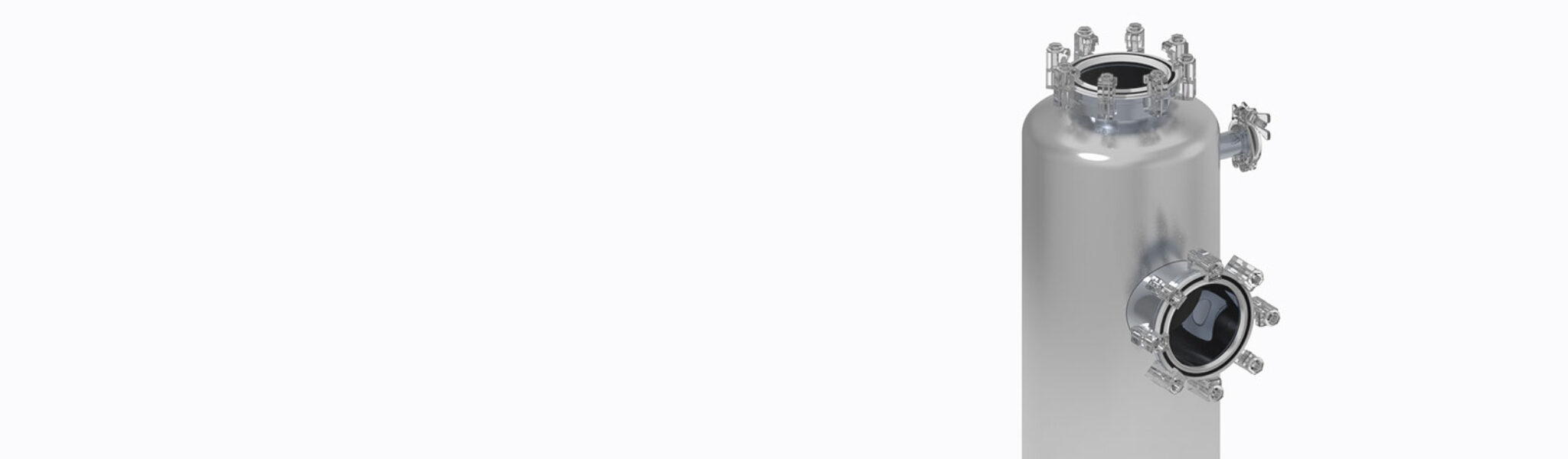

EBARA Vacuum Particle Trap 真空粒子捕集器
用于严苛工况下保护真空泵，安装在工艺腔体和泵入口之间。
- 型号
- Vacuum Particle Trap
- 安装位置
- between the process chamber and the pump inlet
- 技术信息
- Different sizes of particle containers available; Autoclean option
- 生产信息
- Engineered and produced in Germany

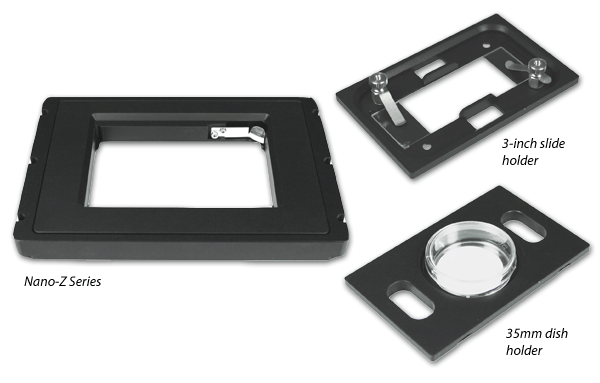

Mad City Labs Nano-Z Series
微定位系统. 页面列出的重点包括: Ultra-low profile piezo nanopositioner Closed loop control Easy sample holder exchange Compatible with many mi...
- 型号
- Nano-Z Series
- 产品特点
- Ultra-low profile piezo nanopositioner Closed loop control Easy sample holder exchange Compatible with many microscope stages
- 典型应用
- High speed confocal microscopy High throughput fluorescence microscopy Super resolution microscopy
- 控制方式
- Closed loop control
MIX 4 MS
2mag »
- Type
- MIX 4 MS
- Stirring points
- 4
- Stirring point distance
- 140 mm
- Stirring volume/stirring point
- 1 – 3,000 ml

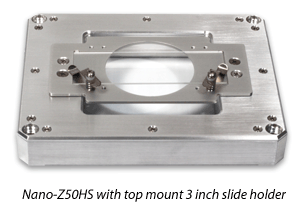

Mad City Labs Nano-Z50HS
控制器. 页面列出的重点包括: High speed Z-axis piezo nanopositioner Low profile: 0.77" Integrated sample holder 50 μm motion Closed loop control
- 型号
- Nano-Z50HS
- 产品特点
- High speed Z-axis piezo nanopositioner Low profile: 0.77" Integrated sample holder 50 μm motion Closed loop control
- 典型应用
- Optical microscopy High speed confocal imaging Up to 150Hz sine wave motion
- 技术参数
- Range of motion 50 μm Resolution 0.1 nm Resonant Frequency 1000 Hz ±20% Stiffness 1.0 N/μm Recommended max. load (horizontal)* 200 g Body Material Aluminum Controller Nano-Drive ® 85 * Larger load requirements should be discussed with our engineering
MIX 8 XL
2mag »
- Type
- MIX 8 XL
- Stirring points
- 8
- Stirring point distance
- 90 mm
- Stirring volume/stirring point
- 1 – 3,000 ml
Mad City Labs Nano-ZL-IX5 Series
微定位系统. 页面列出的重点包括: Closed loop control with travel ranges up to 500μm Sub-nanometer precisrion Compatible with IX5-SSA Micro...
- 型号
- Nano-ZL-IX5 Series
- 产品特点
- Closed loop control with travel ranges up to 500μm Sub-nanometer precisrion Compatible with IX5-SSA Microscope Compativble with multiwell plates, selected incubator models, 75mm slide, 35mm & 60mm petri dishes Software: compatible with cellSens and t
- 典型应用
- High speed confocal microscopy High throughput fluorescence microscopy Super resolution microscopy
- 控制方式
- Closed loop control
MIX 12 XL
2mag »
- Type
- MIX 12 XL
- Stirring points
- 12
- Stirring point distance
- 90 mm
- Stirring volume/stirring point
- 1 – 3,000 ml

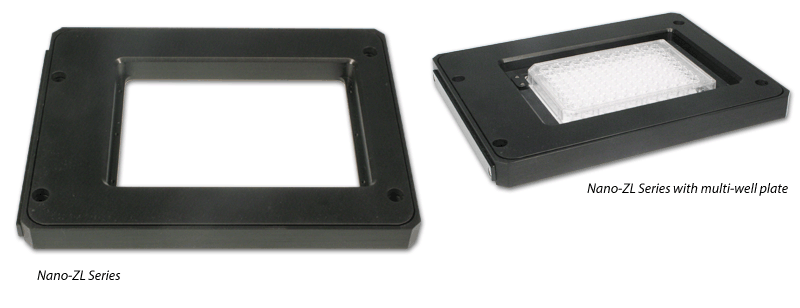

Mad City Labs Nano-ZL Series
微定位系统. 页面列出的重点包括: 500 μm or 100 μm piezo nanopositioner Multiwell plate sized aperture (4.3" x 6.3") Closed loop control Low pr...
- 型号
- Nano-ZL Series
- 产品特点
- 500 μm or 100 μm piezo nanopositioner Multiwell plate sized aperture (4.3" x 6.3") Closed loop control Low profile, easy to retrofit
- 典型应用
- High speed confocal microscopy High throughput fluorescence microscopy Super resolution microscopy
- 控制方式
- Closed loop control
MIXdrive 6
2mag »
- Type
- MIXdrive 6
- Stirring points
- 6
- Stirring point distance
- 130 mm
- Stirring volume/stirring point
- 1 – 3,000 ml

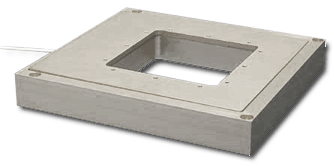

Mad City Labs Nano-ZS Series
微定位系统. 页面列出的重点包括: Single axis piezo nanopositioner (Z) Engineered to retrofit to most microscopes Low profile: 0.8" Large apert...
- 型号
- Nano-ZS Series
- 产品特点
- Single axis piezo nanopositioner (Z) Engineered to retrofit to most microscopes Low profile: 0.8" Large aperture: 2.6” x 2.6” Long range motion: 100 μm or 200 μm Closed loop control
- 典型应用
- Optical microscopy High speed confocal imaging High speed auto focus Super resolution microscopy
- 技术参数
- Range of motion (Nano-ZS100) 100 μm Range of motion (Nano-ZS200) 200 μm Resolution (100/200 μm) 0.2/0
MIXdrive 15
2mag »
- Type
- MIXdrive 15
- Stirring points
- 15
- Stirring point distance
- 65 mm
- Stirring volume/stirring point
- 1 – 3,000 ml
Mad City Labs Nano-CZ200
扫描探针显微系统. 页面列出的重点包括: Single axis (Z) piezo nanopositioner Long range motion - 200μm Compact size Closed loop control
- 型号
- Nano-CZ200
- 产品特点
- Single axis (Z) piezo nanopositioner Long range motion - 200μm Compact size Closed loop control
- 典型应用
- Precision optical alignment and mirror positioning High resolution probe positioning Metrology
- 技术参数
- Range of motion (Z) 200 μm Resolution 0.4 nm Resonant Frequency 500 Hz ±20% Stiffness 1.0 N/μm Recommended max. load (horizontal)* 0.5 kg Recommended max. load (vertical)* 0.1 kg Body Material Aluminum Controller Nano-Drive ® * Larger load requiremen
MIXdrive 60
2mag »
- Type
- MIXdrive 60
- Stirring points
- 60
- Stirring point distance
- 32.5 mm
- Stirring volume/stirring point
- 1 – 500 ml
Mad City Labs Nano-CZ500
扫描探针显微系统. 页面列出的重点包括: Single axis (Z) piezo nanopositioner Long range motion - 500μm Compact size Closed loop control
- 型号
- Nano-CZ500
- 产品特点
- Single axis (Z) piezo nanopositioner Long range motion - 500μm Compact size Closed loop control
- 典型应用
- Precision optical alignment and mirror positioning High resolution probe positioning Metrology
- 技术参数
- Range of motion (Z) 500 μm Resolution 1.0 nm Resonant Frequency 200 Hz ±20% Stiffness 1.0 N/μm Recommended maximum load* 0.5 kg Body Material Aluminum Controller Nano-Drive ® * Based on pictured orientation. Other mounting orientations and / or large
STIRRING HOTPLATE 6
2mag »
- type
- STIRRING HOTPLATE 6
- Stirring points
- 6
- Stirring point distance
- 130 mm
- Stirring volume/stirring point
- 1 – 1,500 ml
Mad City Labs Nano-METZ
扫描探针显微系统. 页面列出的重点包括: Ultra-fast response piezo nanopositioner Femtometer noise floor High stability Closed loop control Compact size...
- 型号
- Nano-METZ
- 产品特点
- Ultra-fast response piezo nanopositioner Femtometer noise floor High stability Closed loop control Compact size Picometer positioning resolution
- 典型应用
- High speed, high resolution positioning Metrology AFM SPM
- 技术参数
- Range of motion 5 μm Resolution 0.005 nm Resonant Frequency 14.5 kHz Recommended max. load (horizontal)* 0.1 kg Recommended max. load (vertical)* 0.1 kg Body Material Aluminum or Titanium Controller Nano-Drive ® * Larger load requirements should be d
STIRRING HOTPLATE 15
2mag »
- type
- STIRRING HOTPLATE 15
- Stirring points
- 15
- Stirring point distance
- 65 mm
- Stirring volume/stirring point
- 1 – 1,000 ml
Mad City Labs Nano-HSZ
扫描探针显微系统. 页面列出的重点包括: Single axis (Z) piezo nanopositionern Step response less than 1 millisecond Scans up to 500 Hz Closed loop contr...
- 型号
- Nano-HSZ
- 产品特点
- Single axis (Z) piezo nanopositionern Step response less than 1 millisecond Scans up to 500 Hz Closed loop control Combine with Nano-OP Series for multi-axis configurations
- 典型应用
- High speed, high resolution positioning Metrology Interferometry
- 技术参数
- Range of motion (Z) 10 μm Resolution 0.01 nm Resonant Frequency 7.5 kHz ±20% Scanning Speed (full amplitude) up to 500 Hz Stiffness 12 N/μm Recommended max. load (horizontal)* 0.1 kg Recommended max. load (vertical)* 0.1 kg Body Material Al, Invar or
STIRRING DRYBATH 15-100
2mag »
- type
- STIRRING DRYBATH 15-100
- Stirring points
- 15
- Stirring point distance
- 65 mm
- Block bores Ø/D
- Ø 57.5 / 48 mm

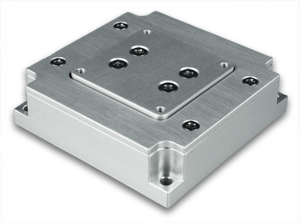

Mad City Labs Nano-MZ
扫描探针显微系统. 页面列出的重点包括: Compact piezo nanopositioner Low profile: 0.76" Closed loop control Custom travel ranges available
- 型号
- Nano-MZ
- 产品特点
- Compact piezo nanopositioner Low profile: 0.76" Closed loop control Custom travel ranges available
- 典型应用
- High resolution Z-axis alignment AFM Metrology
- 技术参数
- Range of motion (Z) 25 μm Resolution 0.05 nm Resonant Frequency 1300 Hz ±20% Stiffness 1.0 N/μm Recommended max. load (horizontal)* 0.5 kg Body Material Aluminum Controller Nano-Drive ® * Larger load requirements should be discussed with our engineer
STIRRING DRYBATH 15-250
2mag »
- type
- STIRRING DRYBATH 15-250
- Stirring points
- 15
- Stirring point distance
- 84 mm
- Block bores Ø/D
- Ø 71.5 / 78 mm
