扫描探针显微系统Mad City Labs型号 Nano-PDQ Series

Mad City Labs Nano-PDQ Series

扫描探针显微系统. 页面列出的重点包括: High speed piezo nanopositioner Two or three axis motion 50 μm or 75 μm ranges of motion Large aperture L...

型号: Nano-PDQ Series
产品特点: High speed piezo nanopositioner Two or three axis motion 50 μm or 75 μm ranges of motion Large aperture Large load capacity Closed loop control
典型应用: Fast multi-axis scanning Optical trap calibration Particle tracking
控制方式: Closed loop control

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 STIRRING DRYBATH 8-250 ERL

STIRRING DRYBATH 8-250 ERL

2mag »

type: STIRRING DRYBATH 8-250 ERL
Stirring points: 8
Stirring point spacing: 100 mm/140 mm
Block bores Ø/D: Ø 87.2 / 78 mm

查看详情

扫描探针显微系统Mad City Labs型号 Nano-MET Series

Mad City Labs Nano-MET Series

扫描探针显微系统. 页面列出的重点包括: High speed, multi-axis piezo nanopositioner 2 and 3 axis configurations Closed loop control Ultra-low noi...

型号: Nano-MET Series
产品特点: High speed, multi-axis piezo nanopositioner 2 and 3 axis configurations Closed loop control Ultra-low noise performance Picometer positioning resolution High stability
典型应用: High speed, high resolution positioning Metrology AFM SPM
技术参数: Range of motion (XY) 75 μm Range of motion (Z) 5 μm Resolution (XY) 0.15 nm Resolution (Z) 0.005 nm Resonant Frequency (XY, Nano-MET2) 1.4 kHz Resonant Frequency (XY, Nano-MET3)) 1.0 kHz Resonant Frequency (Z, Nano-MET3) 13.5 kHz Recommended max. loa

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 MIXdrive 6 MTP

MIXdrive 6 MTP

2mag »

Type: MIXdrive 6 MTP
Stirring points: 6
Stirring point distance: 39 mm
Stirring volume/stirring point (max.): 20 ml

查看详情

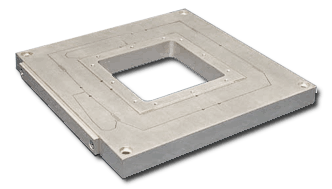

扫描探针显微系统Mad City Labs型号 Nano-Bio Series

Mad City Labs Nano-Bio Series

扫描探针显微系统. 页面列出的重点包括: Lowest profile 2-axis piezo nanopositioner available Large aperture 50 μm x 50 μm, 100 μm x 100 μm, 200 μ...

型号: Nano-Bio Series
产品特点: Lowest profile 2-axis piezo nanopositioner available Large aperture 50 μm x 50 μm, 100 μm x 100 μm, 200 μm x 200 μm, or 300 μm x 300 μm ranges of motion Closed loop control High stability
典型应用: Optical microscopy, easy to retrofit Fluorescence imaging Closed-loop AFM scanner Nanolithography Optical tweezers Super resolution microscopy
控制方式: Closed loop control

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 MIXdrive 12 MTP

MIXdrive 12 MTP

2mag »

Type: MIXdrive 12 MTP
Stirring points: 12
Stirring point distance: 26 mm
Stirring volume/stirring point (max.): 7 ml

查看详情

微定位系统Mad City Labs型号 Nano-BioS Series

Mad City Labs Nano-BioS Series

微定位系统. 页面列出的重点包括: Lowest profile 2-axis piezo nanopositioner available Large rectangular aperture for slides 100 μm x 100 μm,...

型号: Nano-BioS Series
产品特点: Lowest profile 2-axis piezo nanopositioner available Large rectangular aperture for slides 100 μm x 100 μm, 200 μm x 200 μm, or 300 μm x 300 μm ranges of motion Closed loop control High stability
典型应用: Aperture sized for 3 inch slides Optical microscopy, easy to retrofit Fluorescence imaging Closed-loop AFM scanner Nanolithography Optical tweezers Super resolution microscopy
控制方式: Closed loop control

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 MIXdrive 24 MTP

MIXdrive 24 MTP

2mag »

Type: MIXdrive 24 MTP
Stirring points: 24
Stirring point distance: 19 mm
Stirring volume/stirring point (max.): 3.5 ml

查看详情

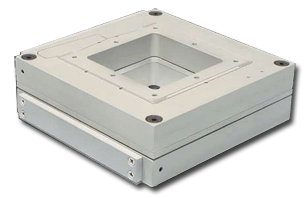

扫描探针显微系统Mad City Labs型号 Nano-H Series

Mad City Labs Nano-H Series

扫描探针显微系统. 页面列出的重点包括: Two axis piezo nanopositioner Aperture for microscopy: 2" x 2" Two axis motion 100 μm or 50 μm ranges of mo...

型号: Nano-H Series
产品特点: Two axis piezo nanopositioner Aperture for microscopy: 2" x 2" Two axis motion 100 μm or 50 μm ranges of motion Compact size Economical Closed loop control
典型应用: Optical microscopy AFM Fluorescence imaging Optical trapping
技术参数: Range of motion (Nano-H100) 100 μm x 100 μm Range of motion (Nano-H50) 50 μm x 50 μm Resolution (Nano-H100) 0.2 nm Resolution (Nano-H50) 0.1 nm Resonant Frequency (X) 500 Hz ±20% Resonant Frequency (Y) 250 Hz ±20% Stiffness 1.0 N/μm θ roll , θ pitch.

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 MIXdrive 96 MTP

MIXdrive 96 MTP

2mag »

Type: MIXdrive 96 MTP
Stirring points: 96
Stirring point distance: 9 mm
Stirring volume/stirring point (max.): 0.5 ml

查看详情

扫描探针显微系统Mad City Labs型号 Nano-T Series

Mad City Labs Nano-T Series

扫描探针显微系统. 页面列出的重点包括: Economical multi-axis piezo nanopositioner Two or three axis motion 100 μm or 200 μm XY ranges of motion 20...

型号: Nano-T Series
产品特点: Economical multi-axis piezo nanopositioner Two or three axis motion 100 μm or 200 μm XY ranges of motion 20 μm or 50 μm Z range of motion Large aperture Closed loop control
典型应用: Multi-axis alignment Fluorescence imaging Closed-loop AFM scanner Super resolution microscopy
技术参数: Range of motion (X, Y) 100 μm/200 μm Range of motion (Z) 20 μm/50 μm Resolution XY (100/200 μm) 0.2/0.4 nm Resolution Z (20/50 μm) 0.04/0.1 nm

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 bioMIX 1

bioMIX 1

2mag » 。Maintenance-free 2mag-stepper-motor-drive for extremely slow and 100% jerk-free and gentle mixing of cell cultures, extended speed range

Type: bioMIX 1
Stirring points: 1
Stirring volume/stirring point: 5 – 5,000 ml
Speed range: 5 – 250 rpm

查看详情

控制器Mad City Labs型号 Nano-Max50

Mad City Labs Nano-Max50

控制器. 页面列出的重点包括: Large load capacity piezo nanopositioner Two axis motion 50 μm x 50 μm ranges of motion Extra large aperture Closed...

型号: Nano-Max50
产品特点: Large load capacity piezo nanopositioner Two axis motion 50 μm x 50 μm ranges of motion Extra large aperture Closed loop control
典型应用: Precision cryostat positioning Low temperature optical microscopy Quantum dot research
技术参数: Range of motion (X) 50 μm Range of motion (Y) 50 μm Resolution 0.1 nm Resonant Frequency (X) 1.5 kHz ±20% Resonant Frequency (Y) 1.0 kHz ±20% Stiffness 5.0 N/μm θ roll , θ pitch (typical) ≤1 μrad θ yaw (typical) ≤3 μrad Recommended max. load (horizon

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 bioMIXdrive 1

bioMIXdrive 1

2mag » 。Maintenance-free 2mag-stepper-motor-drive for extremely slow and 100% jerk-free and gentle mixing of cell cultures, extended speed range

Type: bioMIXdrive 1
Stirring points: 1
Stirring volume/stirring point: 5 – 5,000 ml
Speed range: 5 – 250 rpm

查看详情

扫描探针显微系统Mad City Labs型号 Nano-HS Series

Mad City Labs Nano-HS Series

扫描探针显微系统. 页面列出的重点包括: High speed, multi-axis piezo nanopositioner XY and XYZ configurations Z-axis step response time down to 2m...

型号: Nano-HS Series
产品特点: High speed, multi-axis piezo nanopositioner XY and XYZ configurations Z-axis step response time down to 2ms Z-axis scans up to 300 Hz Closed loop control Picometer positioning resolution High stability
典型应用: High speed, high resolution positioning Metrology AFM SPM
技术参数: Range of motion (XYZ) 10 μm Resolution 0.01 nm XY (HS2) Resonant Frequency 1.5 kHz ±20% XY (HS3) Resonant F

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 bioMIXdrive 2

bioMIXdrive 2

2mag » 。Maintenance-free 2mag-stepper-motor-drive for extremely slow and 100% jerk-free and gentle mixing of cell cultures, extended speed range

Type: bioMIXdrive 2
Stirring points: 2
Stirring point distance: 140 mm
Stirring volume/stirring point: 5 – 5,000 ml

查看详情

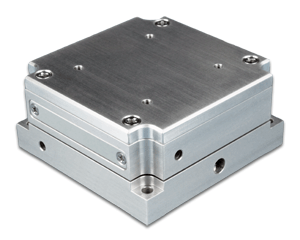

扫描探针显微系统Mad City Labs型号 Nano-M250

Mad City Labs Nano-M250

扫描探针显微系统. 页面列出的重点包括: Compact piezo nanopositioner Two axis motion 50 μm x 50 μm ranges of motion Closed loop control

型号: Nano-M250
产品特点: Compact piezo nanopositioner Two axis motion 50 μm x 50 μm ranges of motion Closed loop control
典型应用: Alignment Nanolithography Scanning microscopy
技术参数: Range of motion (XY) 50 μm x 50 μm Resolution 0.1 nm Resonant Frequency (X) 370 Hz ±20% Resonant Frequency (Y) 300 Hz ±20% Stiffness 1.0 N/μm θ roll , θ pitch (typical) ≤1 μrad θ yaw (typical) ≤3 μrad Recommended max. load (horizontal)* 0.5 kg Recomm

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 bioMIXdrive 3

bioMIXdrive 3

2mag » 。Maintenance-free 2mag-stepper-motor-drive for extremely slow and 100% jerk-free and gentle mixing of cell cultures, extended speed range

Type: bioMIXdrive 3
Stirring points: 3
Stirring point distance: 140 mm
Stirring volume/stirring point: 5 – 5,000 ml

查看详情

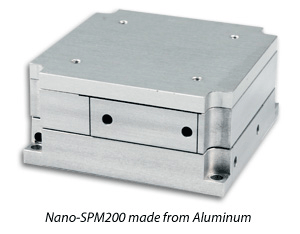

扫描探针显微系统Mad City Labs型号 Nano-SPM200

Mad City Labs Nano-SPM200

扫描探针显微系统. 页面列出的重点包括: Compact piezo nanopositioner 200μm two-axis motion (XY) Closed loop control True flexure guided motion Large ...

型号: Nano-SPM200
产品特点: Compact piezo nanopositioner 200μm two-axis motion (XY) Closed loop control True flexure guided motion Large sample mounting area
典型应用: AFM, NSOM, and other types of scanning probe microscopy (SPM) XY precision alignment Nanofabrication
技术参数: Range of motion (XY) 200 μm Resolution 0.4 nm Resonant Frequency (X) 300 Hz ±20% Resonant Frequency (Y) 300 Hz ±20% Stiffness 1.0 N/μm Recommended max. load (horizontal)* 0.5 kg Recommended max. load (ver

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 bioMXdrive 4

bioMXdrive 4

2mag » 。Maintenance-free 2mag-stepper-motor-drive for extremely slow and 100% jerk-free and gentle mixing of cell cultures, extended

Type: bioMIXdrive 4
Stirring points: 4
Stirring point distance: 140 mm
Stirring volume/stirring point: 5 – 5,000 ml

查看详情

扫描探针显微系统Mad City Labs型号 Nano-LP Series

Mad City Labs Nano-LP Series

扫描探针显微系统. 页面列出的重点包括: Lowest profile 3-axis piezo nanopositioner available Large aperture 100 μm, 200 μm, and 300 μm ranges of m...

型号: Nano-LP Series
产品特点: Lowest profile 3-axis piezo nanopositioner available Large aperture 100 μm, 200 μm, and 300 μm ranges of motion (XYZ) Closed loop control High stability
典型应用: Optical microscopy, easy to retrofit Optical trapping experiments Fluorescence imaging Alignment Single molecule spectroscopy Super resolution microscopy
控制方式: Closed loop control

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 MIX 1 XL

MIX 1 XL

2mag » 。Maintenance-free 2mag-motor-drive with large speed range from 70 up to 2,000 rpm. Fully encapsulated and tight stainless steel housing (IP

Type: MIX 1 XL
Stirring points: 1
Stirring volume/stirring point: 1 – 40 liters
Speed range: 70 – 2,000 rpm

查看详情

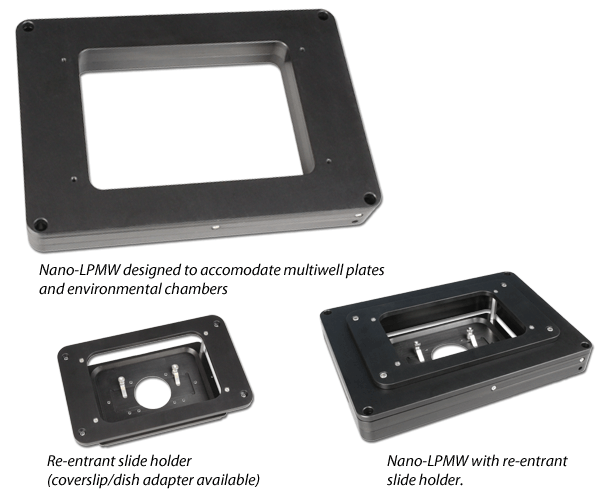

微定位系统Mad City Labs型号 Nano-LPMW

Mad City Labs Nano-LPMW

微定位系统. 页面列出的重点包括: Low profile XYZ piezo nanpositioner Unique design for multiwell plates and incubators 200 μm range of motion (XYZ)...

型号: Nano-LPMW
产品特点: Low profile XYZ piezo nanpositioner Unique design for multiwell plates and incubators 200 μm range of motion (XYZ) Closed loop control High stability
典型应用: Optical microscopy, easy to retrofit Optical trapping experiments Fluorescence imaging Alignment Single molecule spectroscopy Super resolution microscopy
控制方式: Closed loop control

查看详情

Magnetic stirrer and stirring/heating instrument2mag型号 maxMIX

maxMIX

2mag » 。Very strong magnetic coupling, therefore predestined for magnetic power transmission over wide distances (up to 60 mm), for thick vessel b

Type: maxMIX
Stirring points: 1
Stirring volume/stirring point: 1 – 150 liters
Speed range: 100 – 1,200 rpm

查看详情
