产品目录

Mad City Labs Nano-LPQ

扫描探针显微系统. 页面列出的重点包括: Low profile, high speed, XYZ piezo nanopositioner Built-in sample holders Equal speeds on all three axes Closed ...

型号

Nano-LPQ

产品特点

Low profile, high speed, XYZ piezo nanopositioner Built-in sample holders Equal speeds on all three axes Closed loop control High stability

典型应用

Optical microscopy, easy to retrofit Optical trapping experiments Fluorescence imaging Particle tracking Single molecule spectroscopy

控制方式

Closed loop control

MIXdrive 1 XL

2mag » 。Maintenance-free 2mag-motor-drive with large speed range from 70 up to 2,000 rpm. Temperature resistant up to +100°C, optimal for use in o

Type

MIXdrive 1 XL

Stirring points

1

Stirring volume/stirring point

1 – 40 liters

Stirring power (max.)

20 W

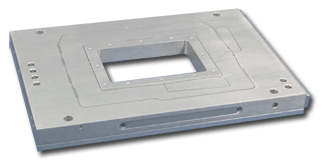

Mad City Labs Nano-LPS Series

微定位系统. 页面列出的重点包括: Lowest profile 3-axis piezo nanopositioner available Large aperture for standard 3" slides 100 μm, 200 μm, a...

型号

Nano-LPS Series

产品特点

Lowest profile 3-axis piezo nanopositioner available Large aperture for standard 3" slides 100 μm, 200 μm, and 300 μm ranges of motion (XYZ) Closed loop control High stability

典型应用

Optical microscopy, easy to retrofit Optical trapping experiments Fluorescence imaging Alignment Single molecule spectroscopy Super resolution microscopy

控制方式

Closed loop control

MAXdrive

2mag » 。Very strong magnetic coupling, therefore predestined for magnetic power transmission over wide distances (up to 60 mm), for thick vessel b

Type

MAXdrive

Stirring points

1

Stirring volume/stirring point

1 – 250 liters

Speed range

100 – 1,200 rpm

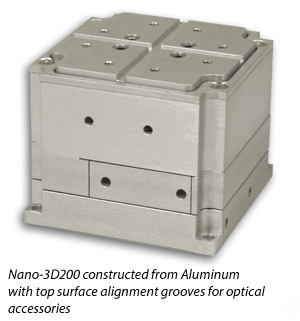

Mad City Labs Nano-3D200

微定位系统. 页面列出的重点包括: Compact piezo nanopositioner Low cost 200 μm three axis motion (XYZ) Closed loop control True flexure guided motion

型号

Nano-3D200

产品特点

Compact piezo nanopositioner Low cost 200 μm three axis motion (XYZ) Closed loop control True flexure guided motion

典型应用

Optical fiber alignment Hybrid positioning systems Nanofabrication

技术参数

Ranges of motion (XYZ) 200 μm Resolution 1 nm Resonant Frequency (X) 150 Hz ±20% Resonant Frequency (Y) 150 Hz ±20% Resonant Frequency (Z) 500 Hz ±20% Stiffness 1.0 N/μm Recommended max. load (horizontal)* 0.5 kg Recommended max. load (vertical)* 0.2

FABdrive

2mag » 。Very strong magnetic coupling, therefore predestined for magnetic power transmission over wide distances (up to Maintenance-free 2mag-moto

Type

FABdrive

Stirring points

1

Stirring volume/stirring point

1 – 1,000 liters

Stirring power (max.)

100 W

Mad City Labs Nano-3D500

控制器. 页面列出的重点包括: Compact piezo nanopositioner 500 μm three axis motion (XYZ) Closed loop control True flexure guided motion

型号

Nano-3D500

产品特点

Compact piezo nanopositioner 500 μm three axis motion (XYZ) Closed loop control True flexure guided motion

典型应用

Optical fiber alignment Hybrid positioning systems Micromachining Micromanipulation

技术参数

Ranges of motion (XYZ) 500 μm Resolution 1 nm Resonant Frequency (X) 75 Hz ±20% Resonant Frequency (Y) 60 Hz ±20% Resonant Frequency (Z) 130 Hz ±20% Stiffness 1.0 N/μm Recommended maximum load* 0.2. kg Body Material Aluminum Controller Nano-Drive ® *

atexMIXdrive

2mag » 。One stirring point with 100% wear- and maintenance-free 2mag induction drive for powerful mixing of solutions, jerk-free stirring even at

Type

atexMIXdrive

Stirring points

1

Stirring volume/stirring point

1 – 10,000 ml

Stirring power (max.)

20 W

Mad City Labs Nano-HS3M

扫描探针显微系统. 页面列出的重点包括: High speed 3 axis piezo nanopositioner Low noise floor Closed loop control Picometer positioning resolution Hig...

型号

Nano-HS3M

产品特点

High speed 3 axis piezo nanopositioner Low noise floor Closed loop control Picometer positioning resolution High stability Compact design

典型应用

High speed, high resolution positioning Metrology AFM SPM

技术参数

Range of motion (XY) 10 μm Range of motion (Z) 5 μm Resolution 0.01 nm Resonant Frequency (X) 1.6 kHz Resonant Frequency (Y) 1.5 kHz Resonant Frequency (Z) 13.5 kHz Recommended max. load (horizontal)* 0.1 kg Recommended max. load (vertical)* 0.1 kg B

steriMIXdrive

2mag » 。Very strong magnetic coupling by SmCo-magnets, therefore predestined for magnetic power transmission over wide distances or for thick ves

Type

steriMIXdrive

Stirring points

1

Stirring volume/stirring point

1 – 40 liters

Stirring power (max.)

20 W

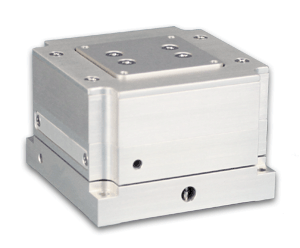

Mad City Labs Nano-M350

扫描探针显微系统. 页面列出的重点包括: Compact piezo nanopositioner Three axis motion (XYZ) 50 μm x 50 μm x 20 μm ranges of motion Closed loop control

型号

Nano-M350

产品特点

Compact piezo nanopositioner Three axis motion (XYZ) 50 μm x 50 μm x 20 μm ranges of motion Closed loop control

典型应用

Alignment MEMS Nanolithography SEM

技术参数

Range of motion (X) 50 μm Range of motion (Y) 50 μm Range of motion (Z) 20 μm Resolution (20/50 μm) 0.04/0.1 nm Resonant Frequency (X) 285 Hz ±20% Resonant Frequency (Y) 285 Hz ±20% Resonant Frequency (Z) 1580 Hz ±20% θ roll , θ pitch (typical) ≤1 μr

bioREACTOR

Designed for the scale-down of biotechnological production processes into the milliliter-scale, developed for efficient process development and high throughp...

型号/页面

bioREACTOR

Mad City Labs Nano-MTA Series

控制器. 页面列出的重点包括: 400 Hz high speed scans One or two axis motion 2 mrad , 5 mrad, or 10mrad ranges of motion Mount in any orient...

型号

Nano-MTA Series

产品特点

400 Hz high speed scans One or two axis motion 2 mrad , 5 mrad, or 10mrad ranges of motion Mount in any orientation Closed loop control High stability /center>

典型应用

High speed laser beam steering Optical trapping Interferometry FBG writing Optical disk manufacturing Astronomy Active optics

技术参数

Range of motion (Nano-MTA2) 2.0 mradian Resolution 4.0 nradian Ran

BA-T/BA微量分析天平

量程:6.2g~220g/可读性:0.001mg~0.01mg 适用于元素分析/化学分析/样品前处理的微量称量。BA-T：彩色触摸屏 BA：单色标准显示屏 BA-TE/BA-E：标配静电消除器 1μg：4个型号 0.01mg：6个型号

Mad City Labs Nano-Theta

控制器. 页面列出的重点包括: Precision rotation piezo nanopositioner: 2 mradians range Accessible and well defined axis of rotation Mount in any...

型号

Nano-Theta

产品特点

Precision rotation piezo nanopositioner: 2 mradians range Accessible and well defined axis of rotation Mount in any orientation High resolution: 4 nanoradians Closed loop control

典型应用

Laser beam scanning Lithography FBG writing Interferometry

技术参数

Range of motion 2.0 mradians Resolution 4 nradians Resonant Frequency (unloaded). 2 kHz ±20% Body Material Al or Invar Controller Nano-Drive ® * Larger load requirements should be discussed with our engineering staff. Nano-Theta Nano-Theta Nano-Theta

BM微量分析天平

量程:5.2g~520g/可读性:0.001mg~0.1mg 最大分辨率达2500万分之一，能有效解决静电问题。采用直流式无风电器消除静电，避免产生粉末样品漂浮

Mad City Labs Nano-Theta/H

控制器. 页面列出的重点包括: Precision rotation: 5 mradians range Large center aperture Mount in any orientation High resolution: 10 nanoradia...

型号

Nano-Theta/H

产品特点

Precision rotation: 5 mradians range Large center aperture Mount in any orientation High resolution: 10 nanoradians Closed loop control

典型应用

Precision alignment Lithography FBG writing Polarized nanoscopy

技术参数

Range of motion 5.0 mradians Resolution 10 nradians Resonant Frequency (unloaded). 300Hz ±20% Recommended max. load (horizontal)* 0.5 kg Recommended max. load (vertical)* 0.2 kg Body Material Al, Invar or Titanium Controller Nano-Drive ® * Larger loa

AD-4212D微量/半微量天平

量程:32g~320g/可读性:0.001mg~0.01mg 高速精准微量称重模块，可以不使用控制器，直接输出到PC/PLC，适用于手套箱/通风橱/洁净室/生产线上的微量称量。可选配控制器，同时有多种通信方式可选：

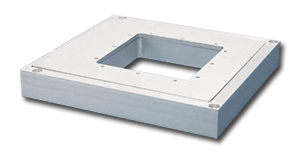

Mad City Labs Nano-Align3 Series

控制器. 页面列出的重点包括: Low profile piezo nanopositioner: 0.8" Three axis motion (Z θ X θ Y ) Large center aperture: 2.6" x 2.6" Lo...

型号

Nano-Align3 Series

产品特点

Low profile piezo nanopositioner: 0.8" Three axis motion (Z θ X θ Y ) Large center aperture: 2.6" x 2.6" Long range: 100 μm or 200 μm (Z), 2mradians or 4mradians (θ X θ Y ) Closed loop control

典型应用

Z-axis plus tip/tilt alignment Nanolithography Microscopy MEMS

技术参数

Ranges of motion (Nano-Align3-100) Z axis 100 μm θ X and θ Y 2 mradian Ranges of motion (Nano-Align3-200) Z axis 200 μm θ X and θ Y 4 mradian Resolution (Nano-Align3-100) 0.2nm/ 4 nradian Resolution (Nano-Align3-200) 0.4nm/ 8 nradian Resonant Frequen

BH-T/BH半微量分析天平

量程:120g~320g/可读性:0.01mg~0.1mg。BH-T/BH系列分析天平是专为现代实验室设计的高精度称重设备，全系搭载自动滑动门，支持非接触式红外感应操作，提升操作效率与卫生标准。BH-T系列更配备5英寸彩色触摸屏、无风离子发生器及多种智能功能，满足各类精密称重与合规需求。

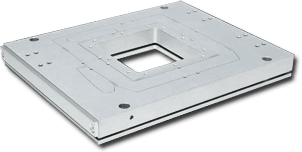

Mad City Labs Nano-Align5 Series

微定位系统. 页面列出的重点包括: Low profile piezo nanopositioner Five axis motion (XYZ θ X θ Y ) 100 μm, 200 μm, or 300 μm motion in XYZ ...

型号

Nano-Align5 Series

产品特点

Low profile piezo nanopositioner Five axis motion (XYZ θ X θ Y ) 100 μm, 200 μm, or 300 μm motion in XYZ Up to 3.3mrad motion in θ X , and up to 4.5 mrad motion in θ Y Center aperture: 2.6" x 2.6" Closed loop control

典型应用

Alignment MEMS Nanolithography Metrology

技术参数

Ranges of motion (Nano-Align5-100) 100 x 100 x 100 μm x 1.1 mrad (θ X ) x 1.5 mrad (θ Y ) Ranges of motion (Nano-Align5-200) 200 x 200 x 200 μm x 2.3 mrad (θ X ) x 3.0 mrad (θ Y ) Ranges of motion (Nano-Align5-300) 300 x 300 x 300 μm x 3.3 mrad (θ X.

GH专业型分析天平

● 标配RS-232C接口，可连接打印机、电脑或其他外部设备。● 自动灵敏度调节，通过自动环境侦测功能自动调整灵敏度适应环境变化。● 支持LAN应用，需选配GH-08(WinCT-Plus)以太网接口

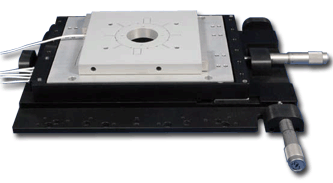

Mad City Labs Nano-Align6 Series

控制器. 页面列出的重点包括: Low profile piezo nanopositioner Six axis motion (XYZ θ X θ Y θ Z ) 100 μm x 100 μm x 100 μm x 1.1 mrad x 1...

型号

Nano-Align6 Series

产品特点

Low profile piezo nanopositioner Six axis motion (XYZ θ X θ Y θ Z ) 100 μm x 100 μm x 100 μm x 1.1 mrad x 1.5 mrad x 5 mrad ranges of motion 200 μm x 200 μm x 200 μm x 2.3 mrad x 3.0 mrad x 5 mrad ranges of motion Center aperture: 35mm diameter Close

典型应用

Alignment MEMS Nanolithography Metrology

技术参数

Ranges of motion (Nano-Align6-100) 100 x 100 x 100 μm x 1.1 mrad (θ X ) x 1.5 mrad (θ Y ) x 5 mrad (θ Z ) Ranges of motion (Nano-Align6-200) 200 x 200 x 200 μm x 2.3 mrad (θ X ) x 3.0 mrad (θ Y ) x 5 mrad (θ Z ) Resolution (Nano-Align6-100) 0.2 nm (X

GX-AE/GX-A/GF-A通用型分析天平

生产线应用时冲击力确认，利于防护措施实施。● 最小称重量自动检测功能（APA），。A&D研创ECL技术精确确认天平重复性/最小称量值。● 带双向RS-232C接口和USB接口，
